點(diǎn)擊圖片查看原圖KQ2E04-00,KQ2E06-00,KQ2E08-00,KQ2E10-00,KQ2E12-00,隔板接頭,價(jià)格

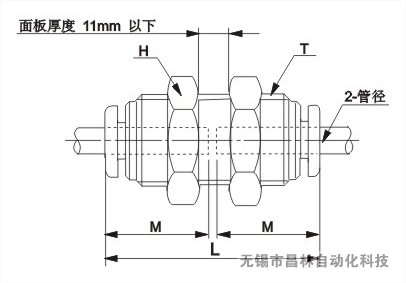

| MODEL | 管徑 | T | H1 | H2 | B | E | φD | 安裝孔 | M | CT(mm2) | 重量 |
| KQ2E04-00 | 4 | M12×1 | 14 | 14 | 18.5 | 31 | 10.4 | 13 | 16 | 5.6 | 26 |
| KQ2E06-00 | 6 | M14×1 | 17 | 17 | 20.5 | 34 | 12.8 | 15 | 17 | 13.1 | 33 |
| KQ2E08-00 | 8 | M16×1 | 17 | 19 | 23.5 | 38.5 | 15.2 | 17 | 18.5 | 26.1 | 52 |
| KQ2E10-00 | 10 | M20×1 | 22 | 24 | 26.5 | 43.5 | 18.5 | 21 | 21 | 41.5 | 70 |
| KQ2E12-00 | 12 | M22×1 | 24 | 27 | 28.5 | 45.5 | 20.9 | 23 | 22 | 58.3 | 90 |
