SWP-3E-C801-80,SWP-3AC-C801-03,SWP-3COS-S803-84,三相電量集中顯示控制儀

  SWP-NAC三相電量集中顯示控制儀是一種智能型電參數數據采集模塊，可測量三相三線制或三相四線制電路中的三相電流、電壓的真有效值，功率、功率因數。其輸入為三相電壓（0-500V）、三相電流（0-20A），輸出為RS-485或RS-232數字信號、4-20mA或0-5V模擬信號，能測量三相電壓值、三相電流值、有功功率、無功功率、功率因數CosΦ及各項有功功率、視在功率等。
SWP-NAC三相電量集中顯示控制儀可廣泛應用于各種工業控制與測量系統及各種集散式/分布式電力監控系統。
SWP-NAC三相電量集中顯示控制儀能代替過去的電流、電壓、功率、功率因數、電量等變送器及測量這些變送器標準輸出信號的輸入模塊，可大降低系統成本，方便現場布線，提高系統可靠性。其485總線輸出與兼容于NuDAM、ADAM等模塊的ascii 碼指集，使其可與其他廠家的控制模塊掛在同一485總線上，且便于計算機編程，使你輕松地構建自己的測控系統。
儀表類型
SWP-NAC-3E      ——AC系列三相交流電量集中顯示控制儀
SWP-NAC-3AC     ——AC系列三相交流電壓/電流表
SWP-NAC-3COS    ——AC系列三相交流功率因數表表

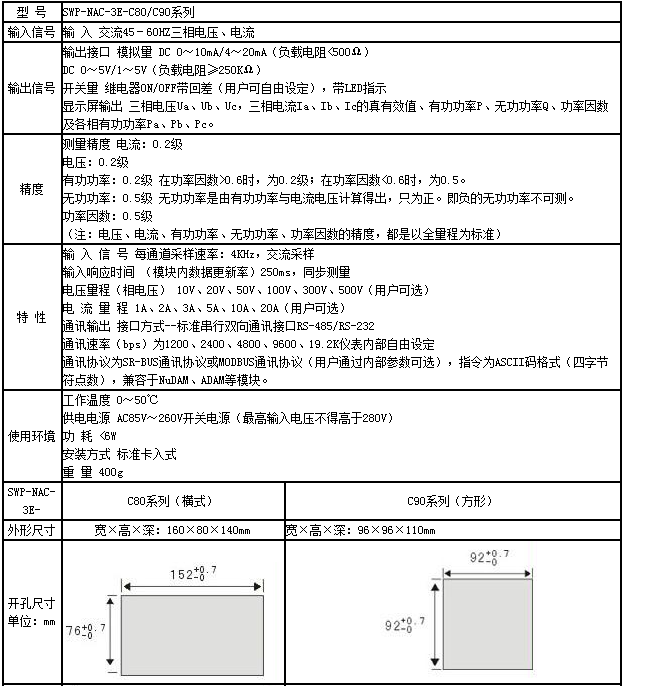

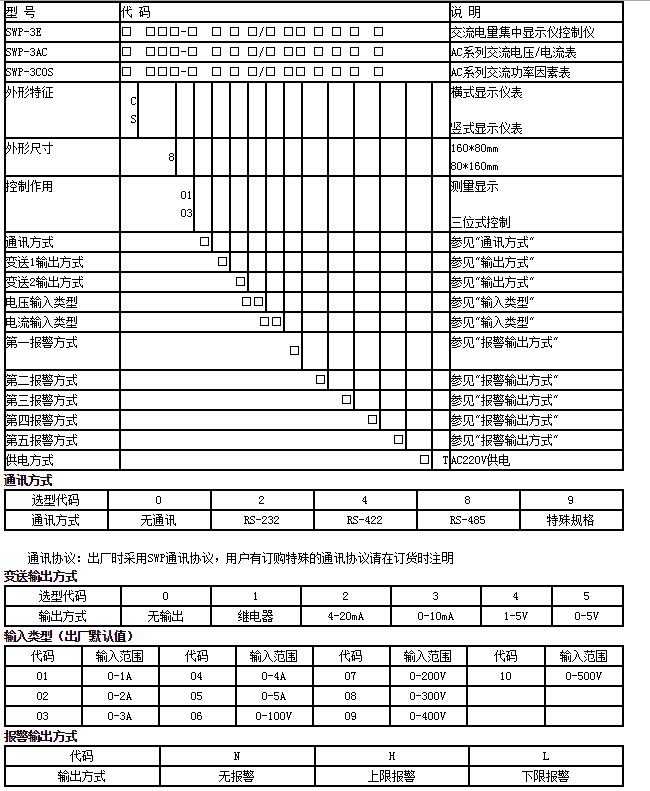

技術參數

SWP-3E-C801-00,SWP-3E-C801-01,SWP-3E-C801-02,SWP-3E-C801-03,SWP-3E-C801-04,SWP-3E-C801-05
SWP-3E-C801-20,SWP-3E-C801-21,SWP-3E-C801-22,SWP-3E-C801-23,SWP-3E-C801-24,SWP-3E-C801-25
SWP-3E-C801-40,SWP-3E-C801-41,SWP-3E-C801-42,SWP-3E-C801-43,SWP-3E-C801-44,SWP-3E-C801-45
SWP-3E-C801-80,SWP-3E-C801-81,SWP-3E-C801-82,SWP-3E-C801-83,SWP-3E-C801-84,SWP-3E-C801-85
SWP-3E-C803-00,SWP-3E-C803-01,SWP-3E-C803-02,SWP-3E-C803-03,SWP-3E-C803-04,SWP-3E-C803-05
SWP-3E-C803-20,SWP-3E-C803-21,SWP-3E-C803-22,SWP-3E-C803-23,SWP-3E-C803-24,SWP-3E-C803-25
SWP-3E-C803-40,SWP-3E-C803-41,SWP-3E-C803-42,SWP-3E-C803-43,SWP-3E-C803-44,SWP-3E-C803-45
SWP-3E-C803-80,SWP-3E-C803-81,SWP-3E-C803-82,SWP-3E-C803-83,SWP-3E-C803-84,SWP-3E-C803-85
SWP-3E-S801-00,SWP-3E-S801-01,SWP-3E-S801-02,SWP-3E-S801-03,SWP-3E-S801-04,SWP-3E-S801-05
SWP-3E-S801-20,SWP-3E-S801-21,SWP-3E-S801-22,SWP-3E-S801-23,SWP-3E-S801-24,SWP-3E-S801-25
SWP-3E-S801-40,SWP-3E-S801-41,SWP-3E-S801-42,SWP-3E-S801-43,SWP-3E-S801-44,SWP-3E-S801-45
SWP-3E-S801-80,SWP-3E-S801-81,SWP-3E-S801-82,SWP-3E-S801-83,SWP-3E-S801-84,SWP-3E-S801-85
SWP-3E-S803-00,SWP-3E-S803-01,SWP-3E-S803-02,SWP-3E-S803-03,SWP-3E-S803-04,SWP-3E-S803-05
SWP-3E-S803-20,SWP-3E-S803-21,SWP-3E-S803-22,SWP-3E-S803-23,SWP-3E-S803-24,SWP-3E-S803-25
SWP-3E-S803-40,SWP-3E-S803-41,SWP-3E-S803-42,SWP-3E-S803-43,SWP-3E-S803-44,SWP-3E-S803-45
SWP-3E-S803-80,SWP-3E-S803-81,SWP-3E-S803-82,SWP-3E-S803-83,SWP-3E-S803-84,SWP-3E-S803-85
SWP-3AC-C801-00,SWP-3AC-C801-01,SWP-3AC-C801-02,SWP-3AC-C801-03,SWP-3AC-C801-04,SWP-3AC-C801-05
SWP-3AC-C801-20,SWP-3AC-C801-21,SWP-3AC-C801-22,SWP-3AC-C801-23,SWP-3AC-C801-24,SWP-3AC-C801-25
SWP-3AC-C801-40,SWP-3AC-C801-41,SWP-3AC-C801-42,SWP-3AC-C801-43,SWP-3AC-C801-44,SWP-3AC-C801-45
SWP-3AC-C801-80,SWP-3AC-C801-81,SWP-3AC-C801-82,SWP-3AC-C801-83,SWP-3AC-C801-84,SWP-3AC-C801-85
SWP-3AC-C803-00,SWP-3AC-C803-01,SWP-3AC-C803-02,SWP-3AC-C803-03,SWP-3AC-C803-04,SWP-3AC-C803-05
SWP-3AC-C803-20,SWP-3AC-C803-21,SWP-3AC-C803-22,SWP-3AC-C803-23,SWP-3AC-C803-24,SWP-3AC-C803-25
SWP-3AC-C803-40,SWP-3AC-C803-41,SWP-3AC-C803-42,SWP-3AC-C803-43,SWP-3AC-C803-44,SWP-3AC-C803-45
SWP-3AC-C803-80,SWP-3AC-C803-81,SWP-3AC-C803-82,SWP-3AC-C803-83,SWP-3AC-C803-84,SWP-3AC-C803-85
SWP-3AC-S801-00,SWP-3AC-S801-01,SWP-3AC-S801-02,SWP-3AC-S801-03,SWP-3AC-S801-04,SWP-3AC-S801-05
SWP-3AC-S801-20,SWP-3AC-S801-21,SWP-3AC-S801-22,SWP-3AC-S801-23,SWP-3AC-S801-24,SWP-3AC-S801-25
SWP-3AC-S801-40,SWP-3AC-S801-41,SWP-3AC-S801-42,SWP-3AC-S801-43,SWP-3AC-S801-44,SWP-3AC-S801-45
SWP-3AC-S801-80,SWP-3AC-S801-81,SWP-3AC-S801-82,SWP-3AC-S801-83,SWP-3AC-S801-84,SWP-3AC-S801-85
SWP-3AC-S803-00,SWP-3AC-S803-01,SWP-3AC-S803-02,SWP-3AC-S803-03,SWP-3AC-S803-04,SWP-3AC-S803-05
SWP-3AC-S803-20,SWP-3AC-S803-21,SWP-3AC-S803-22,SWP-3AC-S803-23,SWP-3AC-S803-24,SWP-3AC-S803-25
SWP-3AC-S803-40,SWP-3AC-S803-41,SWP-3AC-S803-42,SWP-3AC-S803-43,SWP-3AC-S803-44,SWP-3AC-S803-45
SWP-3AC-S803-80,SWP-3AC-S803-81,SWP-3AC-S803-82,SWP-3AC-S803-83,SWP-3AC-S803-84,SWP-3AC-S803-85
SWP-3COS-C801-00,SWP-3COS-C801-01,SWP-3COS-C801-02,SWP-3COS-C801-03,SWP-3COS-C801-04,SWP-3COS-C801-05
SWP-3COS-C801-20,SWP-3COS-C801-21,SWP-3COS-C801-22,SWP-3COS-C801-23,SWP-3COS-C801-24,SWP-3COS-C801-25
SWP-3COS-C801-40,SWP-3COS-C801-41,SWP-3COS-C801-42,SWP-3COS-C801-43,SWP-3COS-C801-44,SWP-3COS-C801-45
SWP-3COS-C801-80,SWP-3COS-C801-81,SWP-3COS-C801-82,SWP-3COS-C801-83,SWP-3COS-C801-84,SWP-3COS-C801-85
SWP-3COS-C803-00,SWP-3COS-C803-01,SWP-3COS-C803-02,SWP-3COS-C803-03,SWP-3COS-C803-04,SWP-3COS-C803-05
SWP-3COS-C803-20,SWP-3COS-C803-21,SWP-3COS-C803-22,SWP-3COS-C803-23,SWP-3COS-C803-24,SWP-3COS-C803-25
SWP-3COS-C803-40,SWP-3COS-C803-41,SWP-3COS-C803-42,SWP-3COS-C803-43,SWP-3COS-C803-44,SWP-3COS-C803-45
SWP-3COS-C803-80,SWP-3COS-C803-81,SWP-3COS-C803-82,SWP-3COS-C803-83,SWP-3COS-C803-84,SWP-3COS-C803-85
SWP-3COS-S801-00,SWP-3COS-S801-01,SWP-3COS-S801-02,SWP-3COS-S801-03,SWP-3COS-S801-04,SWP-3COS-S801-05
SWP-3COS-S801-20,SWP-3COS-S801-21,SWP-3COS-S801-22,SWP-3COS-S801-23,SWP-3COS-S801-24,SWP-3COS-S801-25
SWP-3COS-S801-40,SWP-3COS-S801-41,SWP-3COS-S801-42,SWP-3COS-S801-43,SWP-3COS-S801-44,SWP-3COS-S801-45
SWP-3COS-S801-80,SWP-3COS-S801-81,SWP-3COS-S801-82,SWP-3COS-S801-83,SWP-3COS-S801-84,SWP-3COS-S801-85
SWP-3COS-S803-00,SWP-3COS-S803-01,SWP-3COS-S803-02,SWP-3COS-S803-03,SWP-3COS-S803-04,SWP-3COS-S803-05
SWP-3COS-S803-20,SWP-3COS-S803-21,SWP-3COS-S803-22,SWP-3COS-S803-23,SWP-3COS-S803-24,SWP-3COS-S803-25
SWP-3COS-S803-40,SWP-3COS-S803-41,SWP-3COS-S803-42,SWP-3COS-S803-43,SWP-3COS-S803-44,SWP-3COS-S803-45
SWP-3COS-S803-80,SWP-3COS-S803-81,SWP-3COS-S803-82,SWP-3COS-S803-83,SWP-3COS-S803-84,SWP-3COS-S803-85
