點擊圖片查看原圖
 |
|
型 號
|
KS-L3
|
KS-L6
|
KS-L8
|
KS-L10
|
KS-L15
|
KS-L20
|
KS-L25
|
|
公稱通徑 (mm)
|
3
|
6
|
8
|
10
|
15
|
20
|
25
|
|
工作壓力 (MPa)
|
0.05~0.8
|
||||||
|
流通能力S值
|
4
|
10
|
20
|
40
|
60
|
120
|
190
|
|
泄漏量 (cm2/min)
|
=<10
|
=<25
|
=<10
|
||||
|
換向時間 (S)
|
=<0.03
|
=<0.06
|
=<0.1
|
||||
|
環境溫度 (°C)
|
-5~55
|
||||||
|
介質溫度 (°C)
|
0~50
|
||||||
|
壽命 (萬次)
|
=<150
|
||||||
 |
|

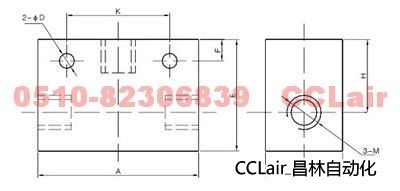

型號
|
A
|
K
|
B
|
E
|
H
|
F
|
D
|
連接螺紋 (M)
|
|
KS-L3
|
38
|
20
|
18
|
26
|
16
|
4
|
3.6
|
M10X1
|
|
KS-L6
|
60
|
36
|
25
|
42
|
28
|
9
|
4.8
|
M10X1 (G1/8)
|
|
KS-L8
|
60
|
36
|
25
|
42
|
28
|
9
|
4.8
|
M12X1.25 (G1/4)
|
|
KS-L10
|
75
|
48
|
36
|
52
|
34
|
10
|
7
|
M16X1.5 (G3/8)
|
|
KS-L15
|
75
|
48
|
36
|
52
|
34
|
10
|
7
|
M20X1.5 (G1/2)
|
|
KS-L20
|
110
|
72
|
55
|
76
|
49
|
12
|
7
|
M27X2 (G3/4)
|
|
KS-L25
|
110
|
72
|
55
|
76
|
49
|
12
|
7
|
M33X2 (G1)
|
