KSA-Z-04F-BSP,KSA-Z-06F-BSP,KSA-Z-04M-NPT,KSA-Z-06M-BSP,標準型快速接頭
KSA-Z-04F-NPT,KSA-Z-06F-NPT,KSA-Z-08F-BSP,KSA-Z-08F-NPT,
KSA-Z-12F-BSP,KSA-Z-12F-NPT,cclair,KSA-Z-16F-BSP,KSA-Z-16F-NPT,
KSA-Z-04M-BSP,KSA-Z-06M-NPT,KSA-Z-08M-BSP,KSA-Z-08M-NPT,
KSA-Z-12M-BSP,KSA-Z-12M-NPT,KSA-Z-16M-BSP,KSA-Z-16M-NPT,
KSA 系列
KSA 系列快速接頭以優質碳鋼和密封材料加工制成?？梢栽诖蠖鄶?shù)油液中使用。符合 ISO 系列之要求，可以與世界各地的工業市場上的許多接頭互換應用。 廣泛應用于液壓系統。
產品說明
KSA-Z 規格-鋼-直通
材質：碳鋼，表面鍍環保鋅
密封件：以NBR為標準
擋圈：鐵氟龍
工作溫度：在標準NBR范圍內，承受-25℃ + 125℃的溫度。

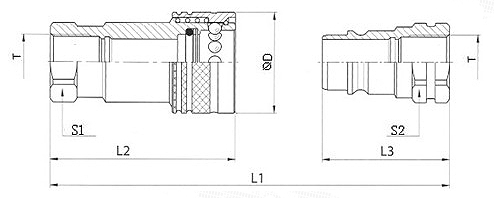

| 昌林液壓 | 國際標準 | L1 | L2 | L3 | ØD | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 70.0 | 49.0 | 35.0 | 26.2 | 19.0 | 19.0 | 1/4" BSP | KSA-Z-04F-BSP | KSA-Z-04M-BSP |
| 1/4" NPT | KSA-Z-04F-NPT | KSA-Z-04M-NPT | ||||||||
| 06 | 10 | 85.0 | 60.5 | 42.5 | 30.5 | 22.0 | 22.0 | 3/8" BSP | KSA-Z-06F-BSP | KSA-Z-06M-BSP |
| 3/8" NPT | KSA-Z-06F-NPT | KSA-Z-06M-NPT | ||||||||
| 08 | 12.5 | 92.5 | 68.5 | 46.5 | 38.0 | 27.0 | 27.0 | 1/2" BSP | KSA-Z-08F-BSP | KSA-Z-08M-BSP |
| 1/2" NPT | KSA-Z-08F-NPT | KSA-Z-08M-NPT | ||||||||
| 12 | 20 | 115.0 | 85.0 | 57.5 | 46.0 | 34.0 | 34.0 | 3/4" BSP | KSA-Z-12F-BSP | KSA-Z-12M-BSP |
| 3/4" NPT | KSA-Z-12F-NPT | KSA-Z-12M-NPT | ||||||||
| 16 | 25 | 131.5 | 99.5 | 65.5 | 52.0 | 41.0 | 41.0 | 1" BSP | KSA-Z-16F-BSP | KSA-Z-16M-BSP |
| 1" NPT | KSA-Z-16F-NPT | KSA-Z-16M-NPT |
| KSA-Z 技術參數 | ||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| 保護帽和保護塞 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
