詳細說明

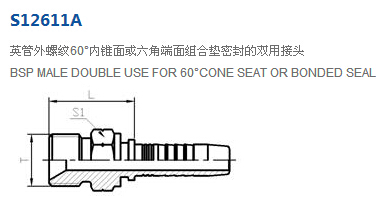

S12611A-04-04,S12611A-06-05,S12611A-08-06,S12611A-12-08,S12611A-20-20,S12611A-32-32,扣壓式軟管接頭
產品技術參數：
| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | ||
|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內徑 DN | 標號 DASH | L | S1 |
| S12611A-04-04 | G1/4＂X19 | 6 | 04 | 25.5 | 19 |
| S12611A-06-05 | G3/8＂X19 | 8 | 05 | 26.5 | 22 |
| S12611A-06-06 | G3/8＂X19 | 10 | 06 | 26.5 | 22 |
| S12611A-06-08 | G3/8＂X19 | 13 | 08 | 28 | 22 |
| S12611A-08-06 | G1/2＂X14 | 10 | 06 | 32 | 27 |
| S12611A-08-08 | G1/2＂X14 | 13 | 08 | 33 | 27 |
| S12611A-08-10 | G1/2＂X14 | 16 | 10 | 34 | 27 |
| S12611A-10-08 | G5/8＂X14 | 13 | 08 | 36 | 30 |
| S12611A-10-10 | G5/8＂X14 | 16 | 10 | 37 | 30 |
| S12611A-12-08 | G3/4＂X14 | 13 | 08 | 35.5 | 32 |
| S12611A-12-10 | G3/4＂X14 | 16 | 10 | 37 | 32 |
| S12611A-12-12 | G3/4＂X14 | 19 | 12 | 37 | 32 |
| S12611A-16-12 | G1＂X11 | 19 | 12 | 41 | 41 |
| S12611A-16-16 | G1＂X11 | 25 | 16 | 42 | 41 |
| S12611A-20-16 | G1.1/4＂X11 | 25 | 16 | 45 | 50 |
| S12611A-20-20 | G1.1/4＂X11 | 32 | 20 | 45 | 50 |
| S12611A-24-20 | G1.1/2＂X11 | 32 | 20 | 49 | 55 |
| S12611A-24-24 | G1.1/2＂X11 | 38 | 24 | 49 | 55 |
| S12611A-32-32 | G2＂X11 | 51 | 32 | 54.5 | 70 |
S12611A-12-10,S12611A-12-12,S12611A-16-12,S12611A-16-16,S12611A-20-16,S12611A-24-20,S12611A-24-24,
