詳細說明

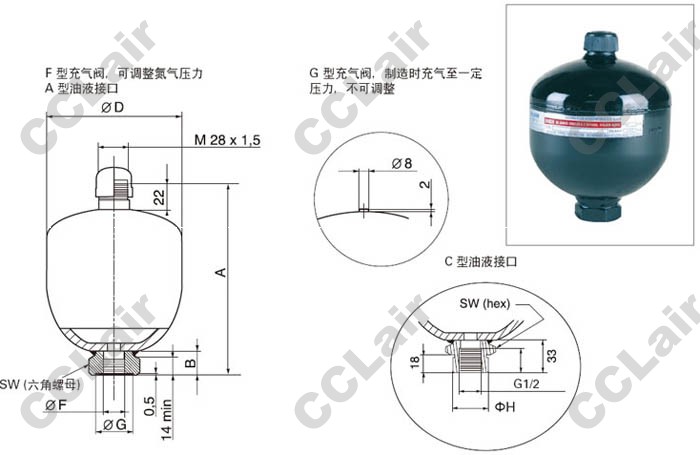

ELM1-210/00/AF,ELM1.4-210/90/CF,ELM1.4-350/90/CF,ELM2-350/90/AF,ELM2-100/90/AF,蓄能器
ELM1-210/00/CF,ELM1.4-210/90/AF,ELM1.4-350/90/AF,ELM2-250/90/AF,ELM2-350/90/CF,
|
訂貨代號
|
ELM1-210/00/AF | ELM1-210/00/CF | ELM1.4-210/90/AF | ELM1.4-210/90/CF | ELM1.4-350/90/AF | ELM1.4-350/90/CF | ELM2-100/90/AF | ELM2-250/90/AF | ELM2-350/90/AF | ELM2-350/90/CF | |||
|
接口形式
|
AF | CF | AF | CF | AF | CF | AF | AF | AF | CF | |||
|
容積V0/L
|
1 | 1 | 1.4 | 1.4 | 1.4 | 1.4 | 2 | 2 | 2 | 2 | |||
|
最高工作壓力/bar
|
210 | 210 | 210 | 210 | 350 | 350 | 100 | 250 | 350 | 350 | |||
|
最高預充壓力/bar
|
130 | 130 | 130 | 130 | 130 | 130 | 100 | 130 | 130 | 130 | |||
|
最大壓縮比P2/P0
|
8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||
|
最大壓力變化值/bar
|
170 | 170 | 120 | 120 | 150 | 150 | 80 | 140 | 200 | 200 | |||
|
重量/kg
|
3.5 | 3.5 | 4.2 | 4.2 | 7.4 | 7.5 | 3.5 | 7.5 | 11.3 | 11.5 | |||
|
A
|
180 | 191 | 191 | 202 | 199 | 220 | 240 | 251 | 219 | 240 | |||
|
B
|
22 | 33 | 22 | 33 | 20 | 20 | 22 | 22 | 22 | 22 | |||
|
SW
|
41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 55 | 55 | |||
|
D
|
136 | 136 | 148 | 148 | 160 | 160 | 144 | 155 | 180 | 180 | |||
|
G
|
34 | - | 34 | - | 34 | - | 34 | 33 | 34 | - | |||
|
G1/2 | G1/2 | G1/2 | G1/2 | G1/2 | G1/2 | G1/2 | G3/4 | G3/4 | G3/4 | |||
|
- |
M33*1.5 |
- |
M33*1.5 |
- |
M33*1.5 |
- |
- |
- |
M45*1.5 |
||||
|
卡箍型號
|
E136 | E136 | E147 | E147 | E147 | E155 | E180 | E180 | |||||
|
鎖緊螺母型號
|
- | M33 | - | M33 | - | M33 | - | - | - | M45 |
