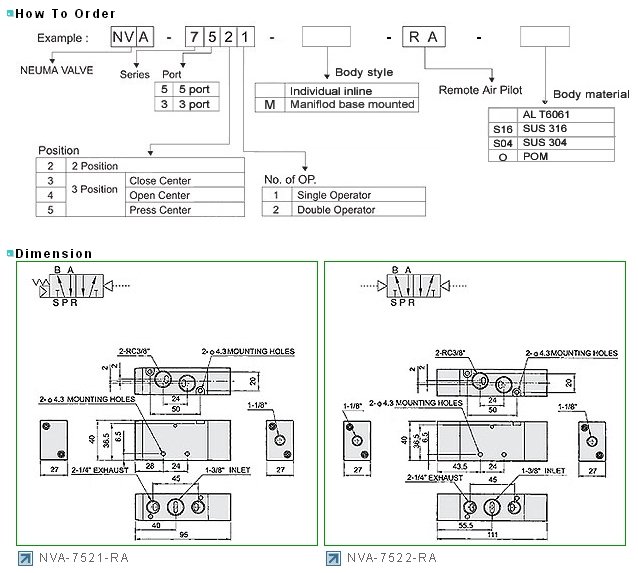

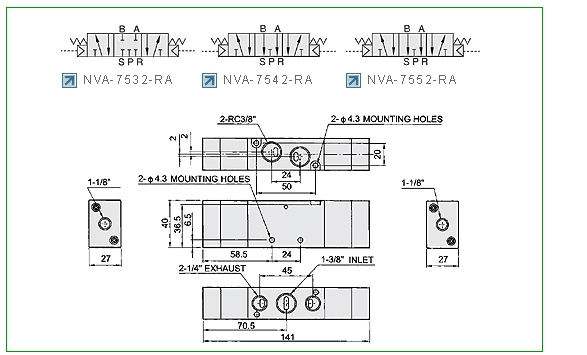

NVA-7521-RA,NVA-7522-RA,NVA-7532-RA,NVA-7542-RA,NVA-7552-RA,neuma氣動閥
Technical Data
|
Model
|
NVA-7521-RA
|
NVA-7522-RA
|
NVA-7532-RA
|
NVA-7542-RA
|
NVA-7552-RA
|
|
|
Position
|
5/2 Way
|
5/3 Way
|
||||
|
Port size
|
G 3/8”
|
|||||
|
Effective area
|
30mm2 (Cv=1.68)
|
18mm2 (Cv=1.0)
|
||||
|
Nominal flow
|
1680 Nl/min
|
1000 Nl/min
|
||||
|
Fluid
|
Compressed air
|
|||||
|
Pressure range
|
2~10 bar (29~144psi)
|
|||||
|
Operating temperature
|
5~60°C (41~140°F)
|
|||||
|
Weight
|
0.22 kg
|
0.24kg
|
0.38kg
|
|||
