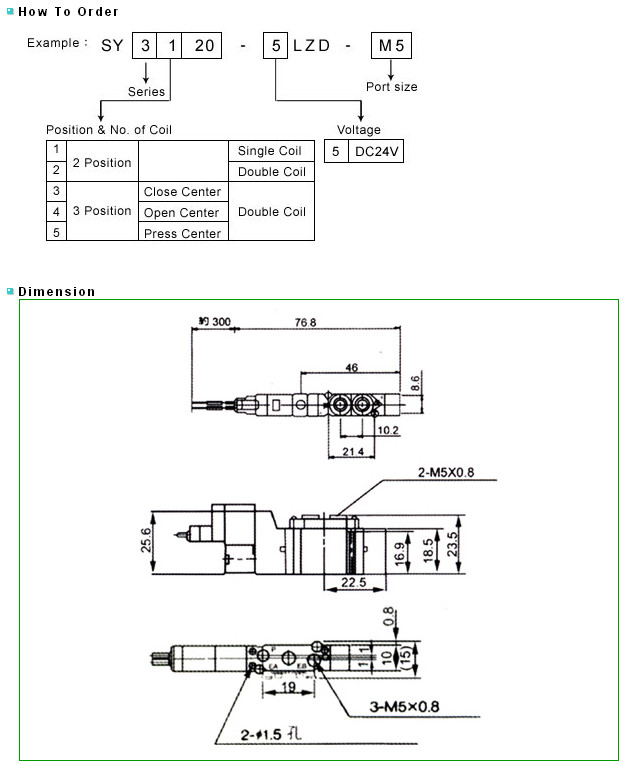

SY3120-5LZD-M5,SY3220-5LZD-M5,SY3320-5LZD-M5,SY3420-5LZD-M5,SY3520-5LZD-M5,neuma電磁閥
Technical Data
|
Model |
SY-3120- | SY-3220- | SY-3320- | SY-3420- | SY-3520- |
|
Position |
5/2 Way |
5/3 Way | |||
|
Port size |
M5 | ||||
|
Effective area |
3.6mm2 (Cv=0.2) | ||||
|
Nominal flow |
195 Nl/min | ||||
|
Fluid |
Compressed Air | ||||
|
Pressure range |
1.5~7 bar (22~101psi) | ||||
|
Operating temperature |
-5~50°C (23~122°F) | ||||
|
Voltage tolerance |
±10% | ||||
|
Power consumption |
DC / 0.55W | ||||
|
Class of insulation |
Class F | ||||
|
Weight |
51g | 70g | 72g | ||
