詳細說明
TP1DF02N1A03,HTP1DF02V1C13,HTP1DF02N1H35,HTP1DF02V1K50,先導式電磁閥
HTP1DF02E1A03,HTP1DF02V1A03,HTP1DF02N1B03,HTP1DF02E1B03,
HTP1DF02V1B03,HTP1DF02N1C13,HTP1DF02E1C13,HTP1DF02N1D13,
HTP1DF02E1D13,HTP1DF02V1D13,cclair,HTP1DF02N1E20,HTP1DF02E1E20,
HTP1DF02V1E20,HTP1DF02N1G25,HTP1DF02E1G25,HTP1DF02V1G25,
HTP1DF02E1H35,HTP1DF02V1H35,HTP1DF02N1J40,HTP1DF02E1J40,
HTP1DF02V1J40,HTP1DF02N1K50,HTP1DF02E1K50,
二位二通常型電磁閥,斷電打開,通電關閉閥體材質為銅,最大耐壓使作壓力:17kgf/cm2環境溫度:0℃～65℃產品系列化生產,體積小,流量大,適用范圍廣按閥上所表流向箭頭,可任意安裝;為增強使用壽命,最好線圈向上,水平安裝
電壓：AC220V/230V/240V/110V/24V
50/60HZ DC24V/12V +10%到-10%允許波動
線圈可配德國原裝NASS線圈
常規備貨:AC220V/230V/240V 50/60HZ DC24V
膜片、密封件，可采用NBR、VITON、EPDM等多種，以適用不同流體的開關控制。
型號規格：
|
接管
口徑 |
流量
通徑 mm |
CV值
|
最小 壓力 |
線圈
配置 |
功率
|
線圈等級 |

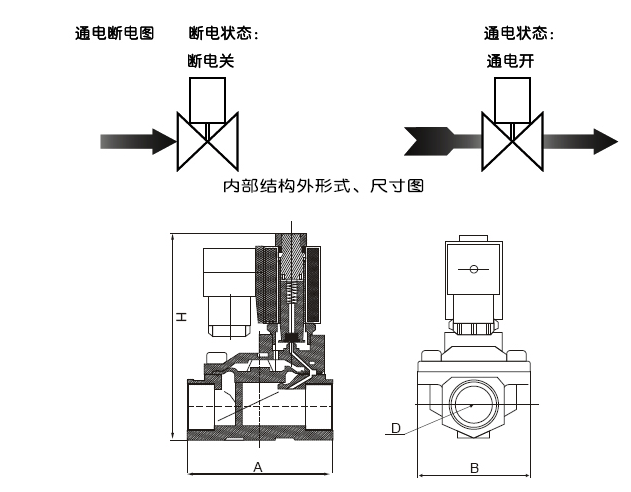

外形尺寸 長X寬X高 A x B x H |
重量
KG |
訂貨型號以下
表中電壓為 220CAC 50/60HZ |
|
|
VA
|
W
|
|||||||||
|
AC220V
|
DC24V
|
|||||||||
| 1/8'' | 3 | 0.23 | 0 | D | 22 | 13 | F | 41x29x83 | 0.37 | HTP1DF02N1A03 |
| 3 | 0.23 | 0 | D | 22 | 13 | F | 41x29x83 | 0.37 | HTP1DF02E1A03 | |
| 3 | 0.23 | 0 | D | 22 | 13 | F | 41x29x83 | 0.37 | HTP1DF02V1A03 | |
| 1/4'' | 3 | 0.23 | 0 | D | 22 | 13 | F | 41x29x83 | 0.36 | HTP1DF02N1B03 |
| 3 | 0.23 | 0 | D | 22 | 13 | F | 41x29x83 | 0.36 | HTP1DF02E1B03 | |
| 3 | 0.23 | 0 | D | 22 | 13 | F | 41x29x83 | 0.36 | HTP1DF02V1B03 | |
| 3/8'' | 13 | 4.5 | 0.5 | D | 22 | 13 | F | 66x48x112 | 0.8 | HTP1DF02N1C13 |
| 13 | 4.5 | 0.5 | D | 22 | 13 | F | 66x48x112 | 0.8 | HTP1DF02E1C13 | |
| 13 | 4.5 | 0.5 | D | 22 | 13 | F | 66x48x112 | 0.8 | HTP1DF02V1C13 | |
| 1/2'' | 13 | 4.5 | 0.5 | D | 22 | 13 | F | 66x48x112 | 0.7 | HTP1DF02N1D13 |
| 13 | 4.5 | 0.5 | D | 22 | 13 | F | 66x48x112 | 0.7 | HTP1DF02E1D13 | |
| 13 | 4.5 | 0.5 | D | 22 | 13 | F | 66x48x112 | 0.7 | HTP1DF02V1D13 | |
| 3/4'' | 20 | 7.6 | 0.5 | D | 22 | 13 | F | 75x58x118 | 0.9 | HTP1DF02N1E20 |
| 20 | 7.6 | 0.5 | D | 22 | 13 | F | 75x58x118 | 0.9 | HTP1DF02E1E20 | |
| 20 | 7.6 | 0.5 | D | 22 | 13 | F | 75x58x118 | 0.9 | HTP1DF02V1E20 | |
| 1'' | 25 | 12 | 0.5 | D | 22 | 13 | F | 96x70x131 | 1.4 | HTP1DF02N1G25 |
| 25 | 12 | 0.5 | D | 22 | 13 | F | 96x70x131 | 1.4 | HTP1DF02E1G25 | |
| 25 | 12 | 0.5 | D | 22 | 13 | F | 96x70x131 | 1.4 | HTP1DF02V1G25 | |
| 11/4'' | 35 | 22 | 0.5 | D | 22 | 13 | F | 131x96x146 | 2.8 | HTP1DF02N1H35 |
| 35 | 22 | 0.5 | D | 22 | 13 | F | 131x96x146 | 2.8 | HTP1DF02E1H35 | |
| 35 | 22 | 0.5 | D | 22 | 13 | F | 131x96x146 | 2.8 | HTP1DF02V1H35 | |
| 11/2'' | 40 | 30 | 0.5 | D | 22 | 13 | F | 131x96x146 | 2.7 | HTP1DF02N1J40 |
| 40 | 30 | 0.5 | D | 22 | 13 | F | 131x96x146 | 2.7 | HTP1DF02E1J40 | |
| 40 | 30 | 0.5 | D | 22 | 13 | F | 131x96x146 | 2.7 | HTP1DF02V1J40 | |
| 2'' | 50 | 48 | 0.5 | D | 22 | 13 | F | 165x120x167 | 4.8 | HTP1DF02N1K50 |
| 50 | 48 | 0.5 | D | 22 | 13 | F | 165x120x167 | 4.8 | HTP1DF02E1K50 | |
| 50 | 48 | 0.5 | D | 22 | 13 | F | 165x120x167 | 4.8 | HTP1DF02V1K50 | |
